ESX Coaxial Cable ESX-LL240 50 Ω

000J0approvedStandard

Std: ESX-LL240 (type)Material: Copper (bare)

50 Ω coaxial cable, OD 6.1 mm, attenuation ≈25 dB/100 m @ 1 GHz (generic ESX-LL240 construction).

Engineering Attributes

Classification

standard specificationESX-LL240 (type)

Dimensions

inner conductor diameter1.42 mm

dielectric diameter3.86 mm

outer diameter6.1 mm

cut to lengthTRUE

Materials & Finish

jacket materialPVC (standard)

Compliance

shieldingBraided shield

Other

impedance50 Ω

attenuation at 1ghz25 dB/100m

velocity factor0.84

bend radius30.5 mm

compatible connector familiesN-type, SMA

cable typeSignal cable

temperature range80 °C

unit of measurem

15 attributes

Interchangeability

No interchangeability relationships defined yet.

Admins can add identical items, functional equivalents, and similar items.

AI · Future: auto-suggest identical items, functional equivalents, and similar items

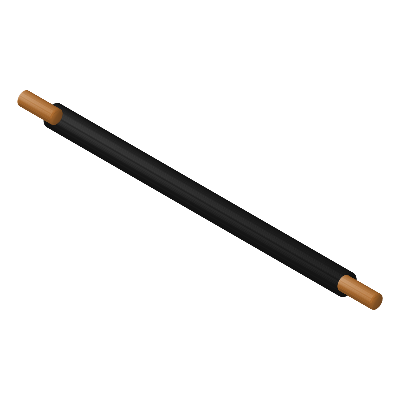

3D · GLB
