DIN 46226 — Fork Terminal 0.5–1.0 mm² M4

000JXapprovedStandard

Std: DIN 46226Material: Copper (tinned)

Uninsulated crimp fork (spade) terminal, 0.5–1.0 mm², stud M4, tin-plated copper.

Engineering Attributes

Classification

standard specificationDIN 46226

Dimensions

stud sizeM4

slot width4.3 mm

tongue width7.2 mm

tongue length9 mm

tongue thickness0.5 mm

barrel outer diameter2.3 mm

barrel inner diameter1.7 mm

barrel length5 mm

Materials & Finish

terminal materialCopper (tin-plated)

Other

conductor cross section range0.5–1.0 mm²

platingTin (Sn)

termination methodCrimp (open barrel)

insulation typeUninsulated

14 attributes

Interchangeability

No interchangeability relationships defined yet.

Admins can add identical items, functional equivalents, and similar items.

AI · Future: auto-suggest identical items, functional equivalents, and similar items

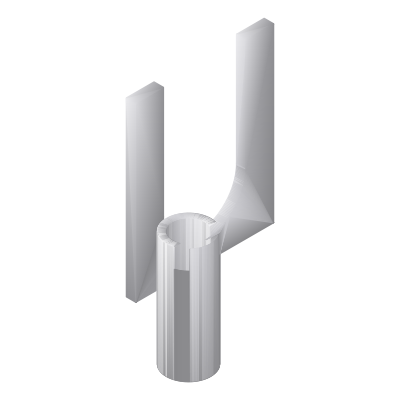

3D · GLB
