ESX Coaxial Cable RG-6/U 75 Ω

000IUapprovedStandard

Std: RG-6/U (type)Material: Copper (bare)

75 Ω coaxial cable, OD 6.9 mm, attenuation ≈30 dB/100 m @ 1 GHz (generic RG-6/U construction).

Engineering Attributes

Classification

standard specificationRG-6/U (type)

Dimensions

inner conductor diameter1.02 mm

dielectric diameter4.57 mm

outer diameter6.9 mm

cut to lengthTRUE

Materials & Finish

jacket materialPVC (standard)

Compliance

shieldingBraided shield

Other

impedance75 Ω

attenuation at 1ghz30 dB/100m

velocity factor0.75

bend radius34.5 mm

compatible connector familiesF-type, BNC

cable typeSignal cable

temperature range80 °C

unit of measurem

15 attributes

Interchangeability

No interchangeability relationships defined yet.

Admins can add identical items, functional equivalents, and similar items.

AI · Future: auto-suggest identical items, functional equivalents, and similar items

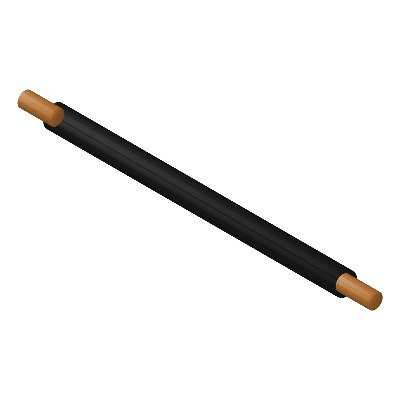

3D · GLB
