DIN 46234 — Ring Terminal 1.5–2.5 mm² M5

000JPapprovedStandard

Std: DIN 46234Material: Copper (tinned)

Uninsulated crimp ring terminal, 1.5–2.5 mm², stud M5, tin-plated copper.

Engineering Attributes

Classification

standard specificationDIN 46234

Dimensions

stud sizeM5

stud hole diameter5.3 mm

tongue outer diameter10.0 mm

tongue thickness0.6 mm

barrel outer diameter3.0 mm

barrel inner diameter2.3 mm

barrel length6 mm

Materials & Finish

terminal materialCopper (tin-plated)

Other

conductor cross section range1.5–2.5 mm²

platingTin (Sn)

termination methodCrimp (open barrel)

insulation typeUninsulated

13 attributes

Interchangeability

No interchangeability relationships defined yet.

Admins can add identical items, functional equivalents, and similar items.

AI · Future: auto-suggest identical items, functional equivalents, and similar items

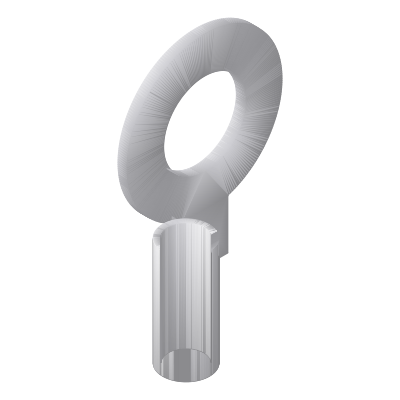

3D · GLB
