DIN 46234 — Ring Terminal 4–6 mm² M8

000JTapprovedStandard

Std: DIN 46234Material: Copper (tinned)

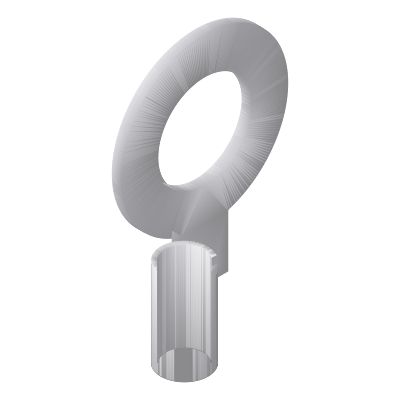

Uninsulated crimp ring terminal, 4–6 mm², stud M8, tin-plated copper.

Engineering Attributes

Classification

standard specificationDIN 46234

Dimensions

stud sizeM8

stud hole diameter8.4 mm

tongue outer diameter15.0 mm

tongue thickness0.8 mm

barrel outer diameter4.2 mm

barrel inner diameter3.4 mm

barrel length7 mm

Materials & Finish

terminal materialCopper (tin-plated)

Other

conductor cross section range4–6 mm²

platingTin (Sn)

termination methodCrimp (open barrel)

insulation typeUninsulated

13 attributes
