DIN 46226 — Fork Terminal 16 mm² M10

000K5approvedStandard

Std: DIN 46226Material: Copper (tinned)

Uninsulated crimp fork (spade) terminal, 16 mm², stud M10, tin-plated copper.

Engineering Attributes

Classification

standard specificationDIN 46226

Dimensions

stud sizeM10

slot width10.5 mm

tongue width17.5 mm

tongue length18 mm

tongue thickness1.2 mm

barrel outer diameter6.9 mm

barrel inner diameter5.8 mm

barrel length10 mm

Materials & Finish

terminal materialCopper (tin-plated)

Other

conductor cross section range16 mm²

platingTin (Sn)

termination methodCrimp (open barrel)

insulation typeUninsulated

14 attributes

Interchangeability

No interchangeability relationships defined yet.

Admins can add identical items, functional equivalents, and similar items.

AI · Future: auto-suggest identical items, functional equivalents, and similar items

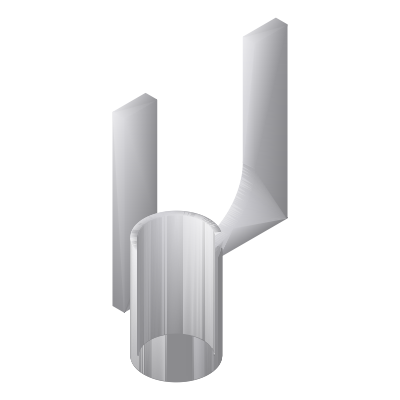

3D · GLB
