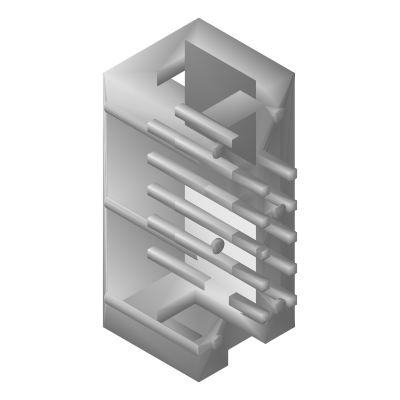

IDC Box Header 2×05 P2.54 mm Vertical (10-way)

000P6approvedStandard

Std: DIN 41651Material: PA / copper alloy

Shrouded IDC box header, 2×5 positions, 2.54 mm pitch, vertical, through-hole.

Engineering Attributes

Classification

standard specificationDIN 41651

Dimensions

contact pitch2.54 mm

Electrical

voltage rating250 V

current rating1 A

Sourcing

cad model origincommunity-provided

Other

connector styleRectangular (generic)

positions10

connector genderMale (plug)

termination methodPCB through-hole (solder pin)

mounting typePCB through-hole

row count2

temperature range105 °C

polarizationKeyed / polarized

compatible cableESX Ribbon Cable 10-Way 1.27 mm Pitch Gray

pin numbering referenceMating face view, pin 1 marked by notch/triangle

cad sourceKiCad packages3D (community)

cad source urlhttps://gitlab.com/kicad/libraries/kicad-packages3D/-/blob/master/Connector_IDC.3dshapes/IDC-Header_2x05_P2.54mm_Vertical.step

cad licenseCC-BY-SA 4.0

cad retrieved at2026-07-12

simplified modelFALSE
