Molex KK-254 AE-6410-04A Header 1×04 P2.54 mm Vertical

000P8approvedStandard

No verified reviews yet

MPN: AE-6410-04AMfr: MolexMaterial: PA / brass (tin-plated)

Datasheet PDF

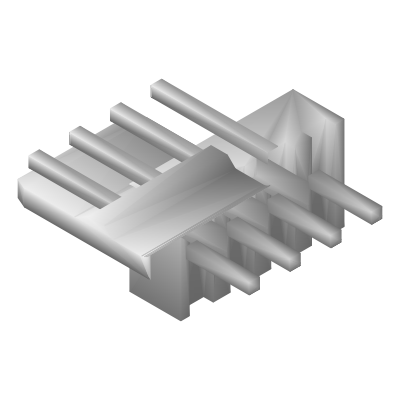

Molex KK 254 series header, 4 positions, 2.54 mm pitch, vertical through-hole.

Engineering Attributes

Dimensions

contact pitch2.54 mm

Electrical

voltage rating250 V

current rating4 A

Sourcing

cad model origincommunity-provided

Other

connector styleRectangular (generic)

positions4

connector genderMale (plug)

termination methodPCB through-hole (solder pin)

mounting typePCB through-hole

temperature range105 °C

compatible wire gaugeAWG 30–22

mates withMolex KK-254 2695 housing + 2759 contacts

pin numbering referenceMating face view, pin 1 at ramp end

cad sourceKiCad packages3D (community)

cad source urlhttps://gitlab.com/kicad/libraries/kicad-packages3D/-/blob/master/Connector_Molex.3dshapes/Molex_KK-254_AE-6410-04A_1x04_P2.54mm_Vertical.step

cad licenseCC-BY-SA 4.0

cad retrieved at2026-07-12

simplified modelFALSE

18 attributes
