ESX Coaxial Cable RG-59 B/U 75 Ω

000ITapprovedStandard

Std: RG-59 B/U (type)Material: Copper (bare)

75 Ω coaxial cable, OD 6.15 mm, attenuation ≈40 dB/100 m @ 1 GHz (generic RG-59 B/U construction).

Engineering Attributes

Classification

standard specificationRG-59 B/U (type)

Dimensions

inner conductor diameter0.58 mm

dielectric diameter3.7 mm

outer diameter6.15 mm

cut to lengthTRUE

Materials & Finish

jacket materialPVC (standard)

Compliance

shieldingBraided shield

Other

impedance75 Ω

attenuation at 1ghz40 dB/100m

velocity factor0.66

bend radius30.8 mm

compatible connector familiesBNC, F-type

cable typeSignal cable

temperature range80 °C

unit of measurem

15 attributes

Interchangeability

No interchangeability relationships defined yet.

Admins can add identical items, functional equivalents, and similar items.

AI · Future: auto-suggest identical items, functional equivalents, and similar items

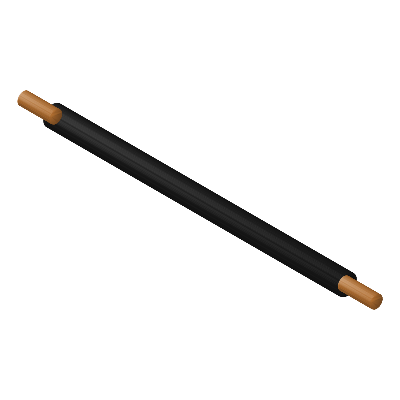

3D · GLB
