ESX Coaxial Cable RG-58 C/U 50 Ω

000ISapprovedStandard

Std: RG-58 C/U (type)Material: Copper (bare)

50 Ω coaxial cable, OD 4.95 mm, attenuation ≈65 dB/100 m @ 1 GHz (generic RG-58 C/U construction).

Engineering Attributes

Classification

standard specificationRG-58 C/U (type)

Dimensions

inner conductor diameter0.9 mm

dielectric diameter2.95 mm

outer diameter4.95 mm

cut to lengthTRUE

Materials & Finish

jacket materialPVC (standard)

Compliance

shieldingBraided shield

Other

impedance50 Ω

attenuation at 1ghz65 dB/100m

velocity factor0.66

bend radius24.8 mm

compatible connector familiesBNC, SMA, TNC

cable typeSignal cable

temperature range80 °C

unit of measurem

15 attributes

Interchangeability

No interchangeability relationships defined yet.

Admins can add identical items, functional equivalents, and similar items.

AI · Future: auto-suggest identical items, functional equivalents, and similar items

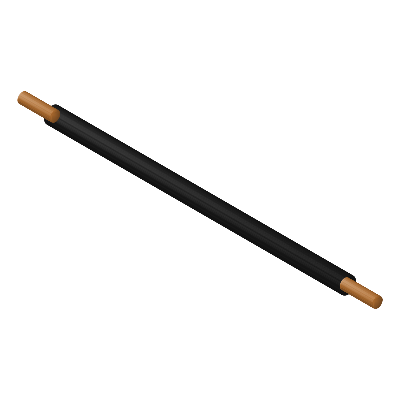

3D · GLB
