DIN 46226 — Fork Terminal 10 mm² M8

000K4approvedStandard

Std: DIN 46226Material: Copper (tinned)

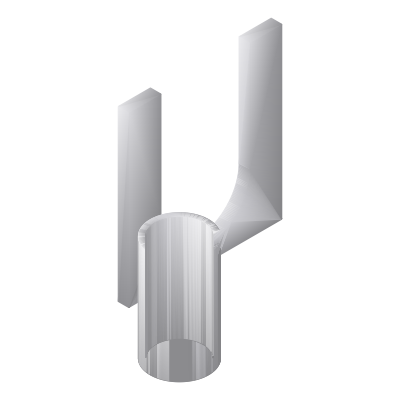

Uninsulated crimp fork (spade) terminal, 10 mm², stud M8, tin-plated copper.

Engineering Attributes

Classification

standard specificationDIN 46226

Dimensions

stud sizeM8

slot width8.4 mm

tongue width14.5 mm

tongue length16 mm

tongue thickness1.0 mm

barrel outer diameter5.5 mm

barrel inner diameter4.5 mm

barrel length9 mm

Materials & Finish

terminal materialCopper (tin-plated)

Other

conductor cross section range10 mm²

platingTin (Sn)

termination methodCrimp (open barrel)

insulation typeUninsulated

14 attributes
