Phoenix MKDS 1,5/4 PCB Terminal Block 1×04 P5.00 mm

000P9approvedStandard

No verified reviews yet

MPN: MKDS 1,5/ 4 (1715747)Std: IEC 60947-7-4Mfr: Phoenix ContactMaterial: PA66 / copper alloy

Datasheet PDF

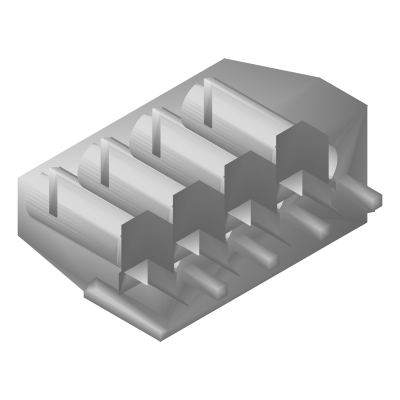

Phoenix Contact MKDS 1,5/4 PCB screw terminal block, 4 poles, 5.00 mm pitch.

Engineering Attributes

Classification

standard specificationIEC 60947-7-4

Dimensions

contact pitch5.0 mm

Electrical

voltage rating400 V

current rating16 A

Materials & Finish

housing materialPA6 / PA66 (nylon)

Sourcing

cad model origincommunity-provided

Other

poles4

conductor cross section max1.5 mm²

termination methodScrew clamp (terminal block)

mounting typePCB through-hole

temperature range105 °C

compatible ferrulesDIN 46228-1

cad sourceKiCad packages3D (community)

cad source urlhttps://gitlab.com/kicad/libraries/kicad-packages3D/-/blob/master/TerminalBlock_Phoenix.3dshapes/TerminalBlock_Phoenix_MKDS-1,5-4_1x04_P5.00mm_Horizontal.step

cad licenseCC-BY-SA 4.0

cad retrieved at2026-07-12

simplified modelFALSE

17 attributes
