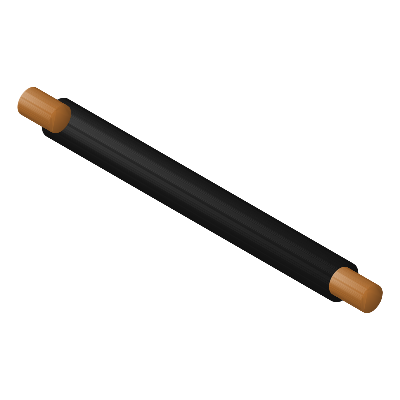

ESX Coaxial Cable ESX-LL400 50 Ω

000J1approvedStandard

Std: ESX-LL400 (type)Material: Copper (bare)

50 Ω coaxial cable, OD 10.3 mm, attenuation ≈13 dB/100 m @ 1 GHz (generic ESX-LL400 construction).

Engineering Attributes

Classification

standard specificationESX-LL400 (type)

Dimensions

inner conductor diameter2.74 mm

dielectric diameter7.24 mm

outer diameter10.3 mm

cut to lengthTRUE

Materials & Finish

jacket materialPVC (standard)

Compliance

shieldingBraided shield

Other

impedance50 Ω

attenuation at 1ghz13 dB/100m

velocity factor0.85

bend radius51.5 mm

compatible connector familiesN-type, 7/16 DIN

cable typeSignal cable

temperature range80 °C

unit of measurem
