DIN 46234 — Ring Terminal 0.5–1.0 mm² M3

000JMapprovedStandard

Std: DIN 46234Material: Copper (tinned)

Uninsulated crimp ring terminal, 0.5–1.0 mm², stud M3, tin-plated copper.

Engineering Attributes

Classification

standard specificationDIN 46234

Dimensions

stud sizeM3

stud hole diameter3.2 mm

tongue outer diameter6.5 mm

tongue thickness0.5 mm

barrel outer diameter2.3 mm

barrel inner diameter1.7 mm

barrel length5 mm

Materials & Finish

terminal materialCopper (tin-plated)

Other

conductor cross section range0.5–1.0 mm²

platingTin (Sn)

termination methodCrimp (open barrel)

insulation typeUninsulated

13 attributes

Interchangeability

No interchangeability relationships defined yet.

Admins can add identical items, functional equivalents, and similar items.

AI · Future: auto-suggest identical items, functional equivalents, and similar items

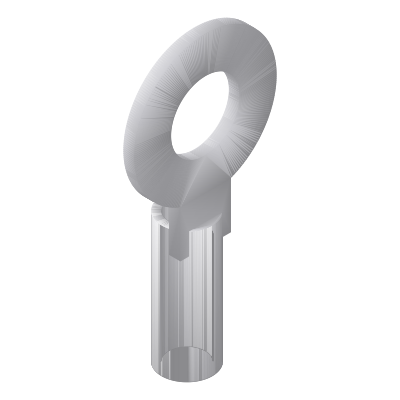

3D · GLB
