DIN 46234 — Ring Terminal 10 mm² M8

000JUapprovedStandard

Std: DIN 46234Material: Copper (tinned)

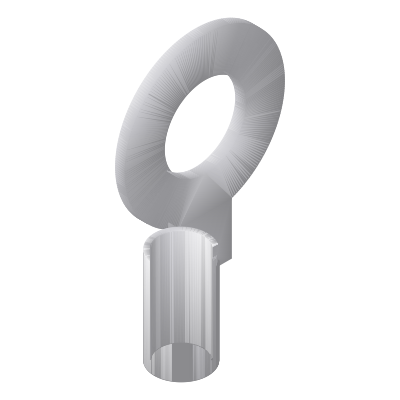

Uninsulated crimp ring terminal, 10 mm², stud M8, tin-plated copper.

Engineering Attributes

Classification

standard specificationDIN 46234

Dimensions

stud sizeM8

stud hole diameter8.4 mm

tongue outer diameter16.5 mm

tongue thickness1.0 mm

barrel outer diameter5.5 mm

barrel inner diameter4.5 mm

barrel length9 mm

Materials & Finish

terminal materialCopper (tin-plated)

Other

conductor cross section range10 mm²

platingTin (Sn)

termination methodCrimp (open barrel)

insulation typeUninsulated

13 attributes
