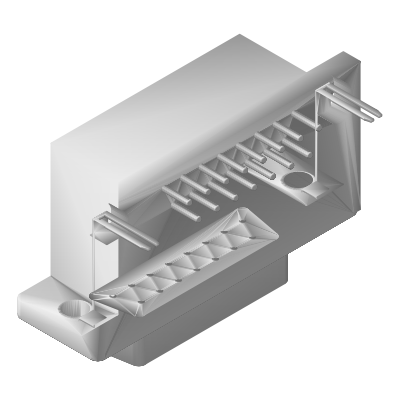

ESX D-Sub Connector DB15 Male Solder Cup

000KSapprovedStandard

No verified reviews yet

Std: DIN 41652Material: Steel shell / PBT insert

Datasheet PDF

Generic D-subminiature connector, 15 positions, male pins, solder-cup termination, per DIN 41652 (type).

Engineering Attributes

Classification

standard specificationDIN 41652 / MIL-DTL-24308 (type)

Dimensions

contact pitch2.77 mm

Electrical

voltage rating250 V

current rating5 A

Materials & Finish

contact materialCopper alloy (brass)

housing materialPBT (polybutylene terephthalate)

Sourcing

cad model origincommunity-provided

Other

connector styleD-Sub DB15 (15-pin)

positions15

connector genderMale (plug)

termination methodSolder (cup / barrel)

mounting typePanel mount (surface)

contact platingGold (Au) — standard (0.2μm)

locking methodScrew lock

polarizationKeyed / polarized

pin numbering referenceMating face view, row 1 top, left to right

mates withESX D-Sub Connector DB15 Female Solder Cup

compatible wire gaugeAWG 28–20

temperature range105 °C

cad sourceKiCad packages3D (community)

cad source urlhttps://gitlab.com/kicad/libraries/kicad-packages3D/-/blob/master/Connector_Dsub.3dshapes/DSUB-15_Pins_Horizontal_P2.77x2.84mm_EdgePinOffset14.56mm_Housed_MountingHolesOffset15.98mm.step

cad licenseCC-BY-SA 4.0

cad retrieved at2026-07-12

simplified modelFALSE

24 attributes
