DIN 46234 — Ring Terminal 16 mm² M10

000JVapprovedStandard

Std: DIN 46234Material: Copper (tinned)

Uninsulated crimp ring terminal, 16 mm², stud M10, tin-plated copper.

Engineering Attributes

Classification

standard specificationDIN 46234

Dimensions

stud sizeM10

stud hole diameter10.5 mm

tongue outer diameter20.0 mm

tongue thickness1.2 mm

barrel outer diameter6.9 mm

barrel inner diameter5.8 mm

barrel length10 mm

Materials & Finish

terminal materialCopper (tin-plated)

Other

conductor cross section range16 mm²

platingTin (Sn)

termination methodCrimp (open barrel)

insulation typeUninsulated

13 attributes

Interchangeability

No interchangeability relationships defined yet.

Admins can add identical items, functional equivalents, and similar items.

AI · Future: auto-suggest identical items, functional equivalents, and similar items

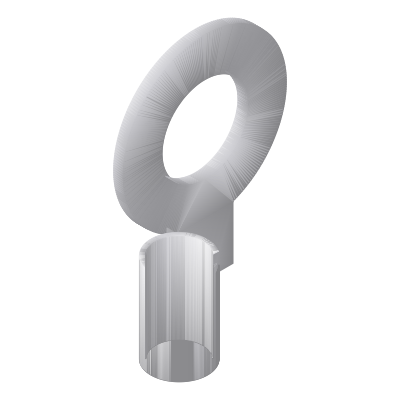

3D · GLB
