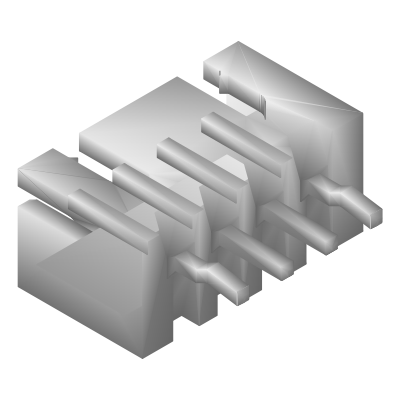

JST XH B4B-XH-A Header 1×04 P2.50 mm Vertical

000P7approvedStandard

MPN: B4B-XH-AMfr: JSTMaterial: PA66 / brass (tin-plated)

JST XH series shrouded header, 4 positions, 2.50 mm pitch, vertical through-hole (B4B-XH-A).

Engineering Attributes

Dimensions

contact pitch2.5 mm

Electrical

voltage rating250 V

current rating3 A

Sourcing

cad model origincommunity-provided

Other

connector styleJST PH / XH / ZH

positions4

connector genderMale (plug)

termination methodPCB through-hole (solder pin)

mounting typePCB through-hole

temperature range85 °C

compatible wire gaugeAWG 30–22

mates withJST XHP-4 housing + SXH-001T contacts

pin numbering referenceMating face view, pin 1 at polarity mark

cad sourceKiCad packages3D (community)

cad source urlhttps://gitlab.com/kicad/libraries/kicad-packages3D/-/blob/master/Connector_JST.3dshapes/JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical.step

cad licenseCC-BY-SA 4.0

cad retrieved at2026-07-12

simplified modelFALSE

18 attributes

Assembly Structure

Interchangeability

No interchangeability relationships defined yet.

Admins can add identical items, functional equivalents, and similar items.

AI · Future: auto-suggest identical items, functional equivalents, and similar items

3D · GLB
