DIN 46226 — Fork Terminal 1.5–2.5 mm² M3.5

000JYapprovedStandard

Std: DIN 46226Material: Copper (tinned)

Uninsulated crimp fork (spade) terminal, 1.5–2.5 mm², stud M3.5, tin-plated copper.

Engineering Attributes

Classification

standard specificationDIN 46226

Dimensions

stud sizeM3.5

slot width3.7 mm

tongue width6.8 mm

tongue length9 mm

tongue thickness0.6 mm

barrel outer diameter3.0 mm

barrel inner diameter2.3 mm

barrel length6 mm

Materials & Finish

terminal materialCopper (tin-plated)

Other

conductor cross section range1.5–2.5 mm²

platingTin (Sn)

termination methodCrimp (open barrel)

insulation typeUninsulated

14 attributes

Interchangeability

No interchangeability relationships defined yet.

Admins can add identical items, functional equivalents, and similar items.

AI · Future: auto-suggest identical items, functional equivalents, and similar items

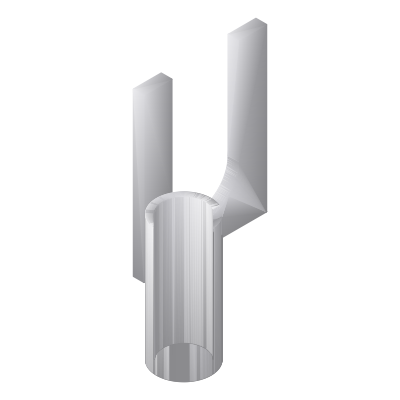

3D · GLB
